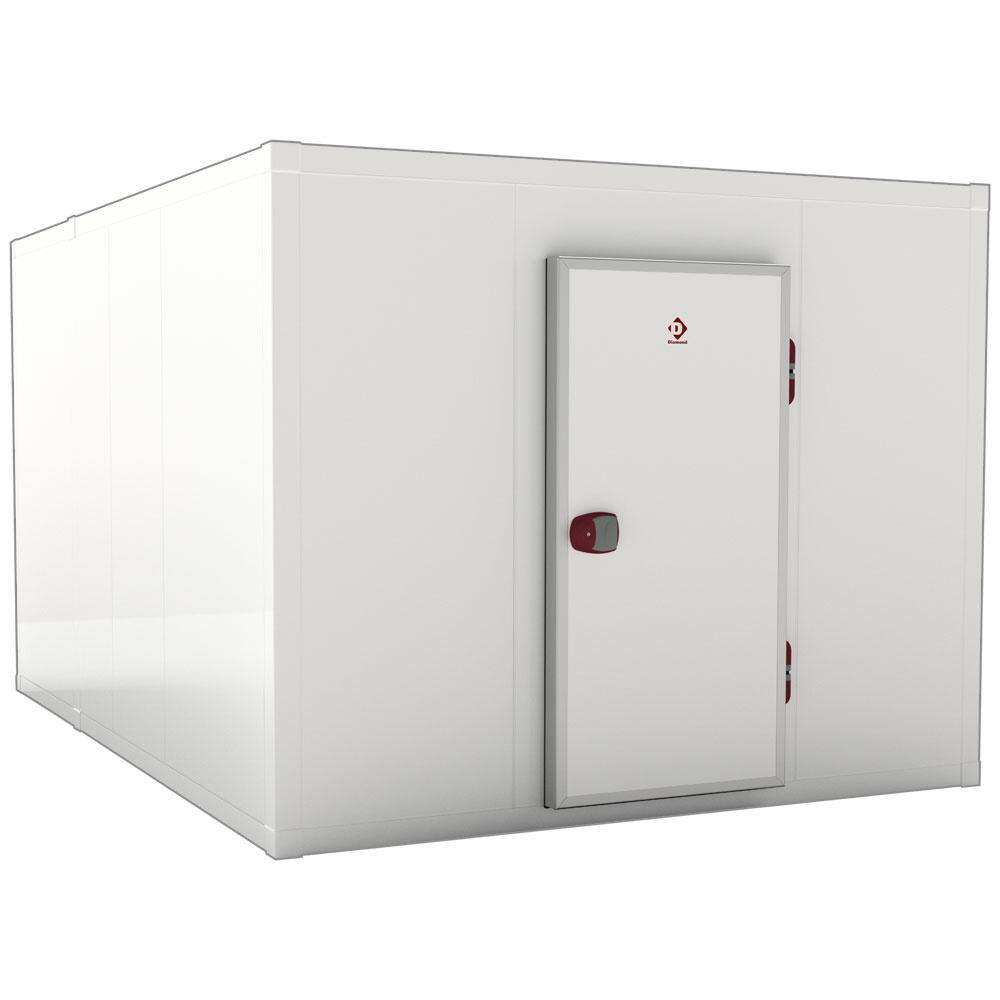

Diamond C2610/XBF Chamber Iso 100, Int. Dim. 2830 X 4030 Xh 2230 Mm (25,43 M³) - C2610-XBF
MPN: C2610-XBF
Description
- Internal dimensions 2830 x 4030 xh 2230 mm.
- Internal volume 25,43 m³.
- Door with useful passage 900 x 1900 mm (positioning of the door at choice, on the 4 sides).
- Door seal equipped with a peripheral heating cord (for negative T°).
- Vacuum valve (for negative temperature).
- Multipurpose chamber for positive or negative temperature, thickness of walls, floor and ceiling 100 mm, modulation with panels from 200 to 1200 mm width (200+200+200 ...).
- Panels made of white lacquered galvanized steel sheet "non-toxic and anti-scratch".
- Insulation in high density injected polyurethane (43 Kg/m3), ecological (without CFC).
- Locking of the panels by incorporated "eccentric" hooks.
- Reinforced floor in 12 mm multiplex wood, covered with a phenolic anti-slip "honeycomb" resin, supporting a load of 4000 kg/m² (140 Kg point load).
- Peripheral corners at 90° with specific caps at the ends, also insulated with polyurethane (50 Kg/m3) avoiding any possible thermal bridge.
- The corners and edges of the floor, ceiling and walls are all rounded (R15 mm) and also insulated with polyurethane (50 Kg/m3).
- Swinging door thickness 80 mm also insulated with polyurethane (43 Kg/m3), with right hinges (on request, possibility of left hinges: CGC/BF), very strong, reinforced with a peripheral frame in anodised aluminum, provided with a magnetic seal in EPDM "pressure" (easy replacement, without tools), adjustable rising hinges and with stop at 100°, external handle with key lock, internal closing with safety device.
- Panel certified in classification "B-S3,d0" according to the UNI EN 13501-1:2009 standard.
- The equipment is built in compliance with the current CE regulations.
Custom Branding
Custom Branded Diamond C2610/XBF Chamber Iso 100, Int. Dim. 2830 X 4030 Xh 2230 Mm (25,43 M³) - C2610-XBF
Here at Go for Green we help businesses big and small to customise products for their brands. Custom printed or custom branded products can help them to stand out on social media, harnessing customers sharing to spread awareness of their brand. Some projects are for small minimum order quantities with express turnarounds. Some projects are for large volumes and can be produced at scale for cheaper pricing per unit. We can decorate here in the UK, and we have international partners too. We have over 70,000 catering and packaging products, and most have branding options that we could use to achieve your goals. Get in touch to discuss your custom project today, or explore our range of customisable products.
Browse All Custom Branded ProductsSpecifications
| Warranty: | 1 Year Parts Only |
| Dimensions: | W3030 x D4230 x H2430 |
| Width: | 3030 |
| Height: | 2430 |
| Depth: | 4230 |
| Weight: | 930 |
Similar Products
Not quite what you're looking for? Browse our range of similar products:
Cold RoomsDiamondCold Rooms by Blue BadgerYou May Also Like
Diamond S80/HBL Furnishing Panel "Blue" Side - S80-HBL
£518.00 £260.50
Diamond DDW-1 Food Heater To Put Down, 1 Drawer (Gn 1/1 - 150 Mm) - DDW-1
£4,732.00 £2,379.72
Diamond TC/805/EF Flexible Shelf " Modular Rack " - TC-805-EF
£84.00 £42.24
Diamond NFT402-R2 Static Freezer, 400 Litres - NFT402-R2
£2,058.00 £1,034.97
7-10 days
Diamond RIN-8/BF Internal Door Ramp (800 Mm) - RIN-8-BF
£74.00 £37.21
7-10 days

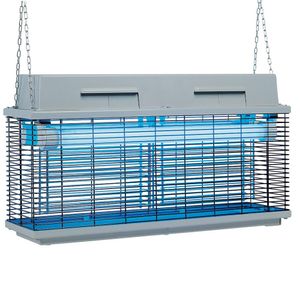

Diamond ME-308A Electric Insect Killer, Lamps Uv-A (2X 40 W) - ME-308A
