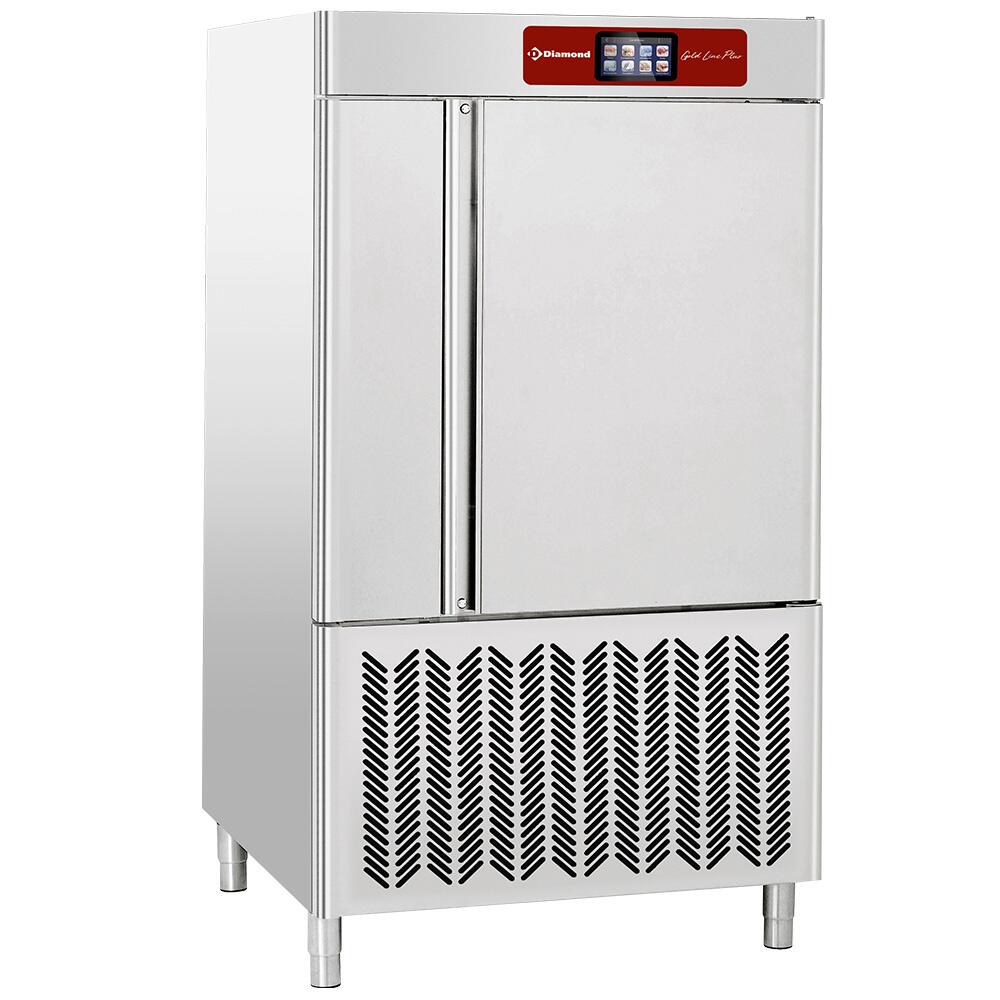

Diamond DBT102/TS Stainless Steel Blast Freezer, 75kg/50kg - DBT102-TS
MPN: DBT102-TS
Description
- Capacity: 10x GN 2/1 (or) 10 x EN 600X800 - 20 x 600X400 mm (grids and plates optional).
- Production per cycle: 75 Kg (+70° C +3° C) or 50Kg (+70° C -18° C).
- Core probe as standard.
- Anti-tilting" structure in stainless steel wire (removable), spacing for 50 & 75 mm plates.
- Door (non-reversible) with integrated handle (not salient).
- Hinges with automatic return (90° locking).
- Insulation 70 mm thickness.
- Refrigerant expansion R404A by thermostatic expansion valve.
- 4 adjustable stainless steel feet.
- TOUCH SCREEN" controls, high definition color touch screen, allowing the user to customize all major functions.
- 4 cycles to choose from "Soft Chill" or "Soft Freeze" for delicate, "Hard-Chill" or "Hard-Freeze" for large parts, timer control with bell at the end of the cycle (or) core probe control, with also the holding function at the end of the cycle and alarm device (visual or acoustic), 99 memorable programs, selection in more than 20 operating cycles, automatic cycle,..
- (See PLUS), display on the front panel.
- Monobloc structure, interior and exterior made of food grade stainless steel (AISI 304).
- Deep-drawn inner bottom, rounded angles and corners (without roughness), with drain plug (heavy maintenance).
- Door with ergonomic handle (not protruding), closing by magnetic "pressure" seal (easy replacement, no tools required), counter-door with heating resistance, avoiding frost formation (Freeze function).
- Door microswitch device, allowing the evaporator fan to stop when it is opened.
- Compressor unit (ambient temperature +43°), ventilated condenser, front accessibility.
- Ventilated evaporator (oversized), treated against salt and food acids, completely hidden (not visible), fan motor IP44.
- Manual or automatic defrosting (beginning of cycle).
- Injected polyurethane insulation (CFC-free).
- The equipment is manufactured following the (CE) standards in force.
Custom Branding
Custom Branded Diamond DBT102/TS Stainless Steel Blast Freezer, 75kg/50kg - DBT102-TS
Here at Go for Green we help businesses big and small to customise products for their brands. Custom printed or custom branded products can help them to stand out on social media, harnessing customers sharing to spread awareness of their brand. Some projects are for small minimum order quantities with express turnarounds. Some projects are for large volumes and can be produced at scale for cheaper pricing per unit. We can decorate here in the UK, and we have international partners too. We have over 70,000 catering and packaging products, and most have branding options that we could use to achieve your goals. Get in touch to discuss your custom project today, or explore our range of customisable products.
Browse All Custom Branded ProductsSpecifications
| Internal Finish: | Stainless Steel |
| Refrigerant: | R404a |
| Temperature Range: | +70\u00b0C to +3\u00b0C |
| Warranty: | 1 Year Parts Only |
| Dimensions: | W1050 x D1080 x H1900 |
| Width: | 1050 |
| Prod Capacity: | 10 x 2\/1 GN |
| Number Of Shelves: | 10 |
| Height: | 1900 |
| Gn Size: | 2\/1 GN |
| Fridge Capacity: | 75kg |
| Freezing Capacity: | 50kg |
| Depth: | 1080 |
| Weight: | 270 |
